Pitot Probes

    Pitot Static Tube

    One probe. Minimum effort, maximum results. One compact solution for Ptot, Pstat and angle-of-attack indication – designed with integration, weight and operational reliability in mind.

    Why our solution

    • Simple installation
    • Angle of attack indication
    • Anti-icing system
    • Lightweight construction resistant to vibrations
    • Option to customize mounting for your aircraft

    Technical Parameters

    TypePitot-static probe with AoA measurement
    FunctionPtot, Pstat, AoA
    Length230 mm
    Weight189 g
    Speedup to 400 km/h
    DesignationCS/FAR 23 and ultralight aircraft

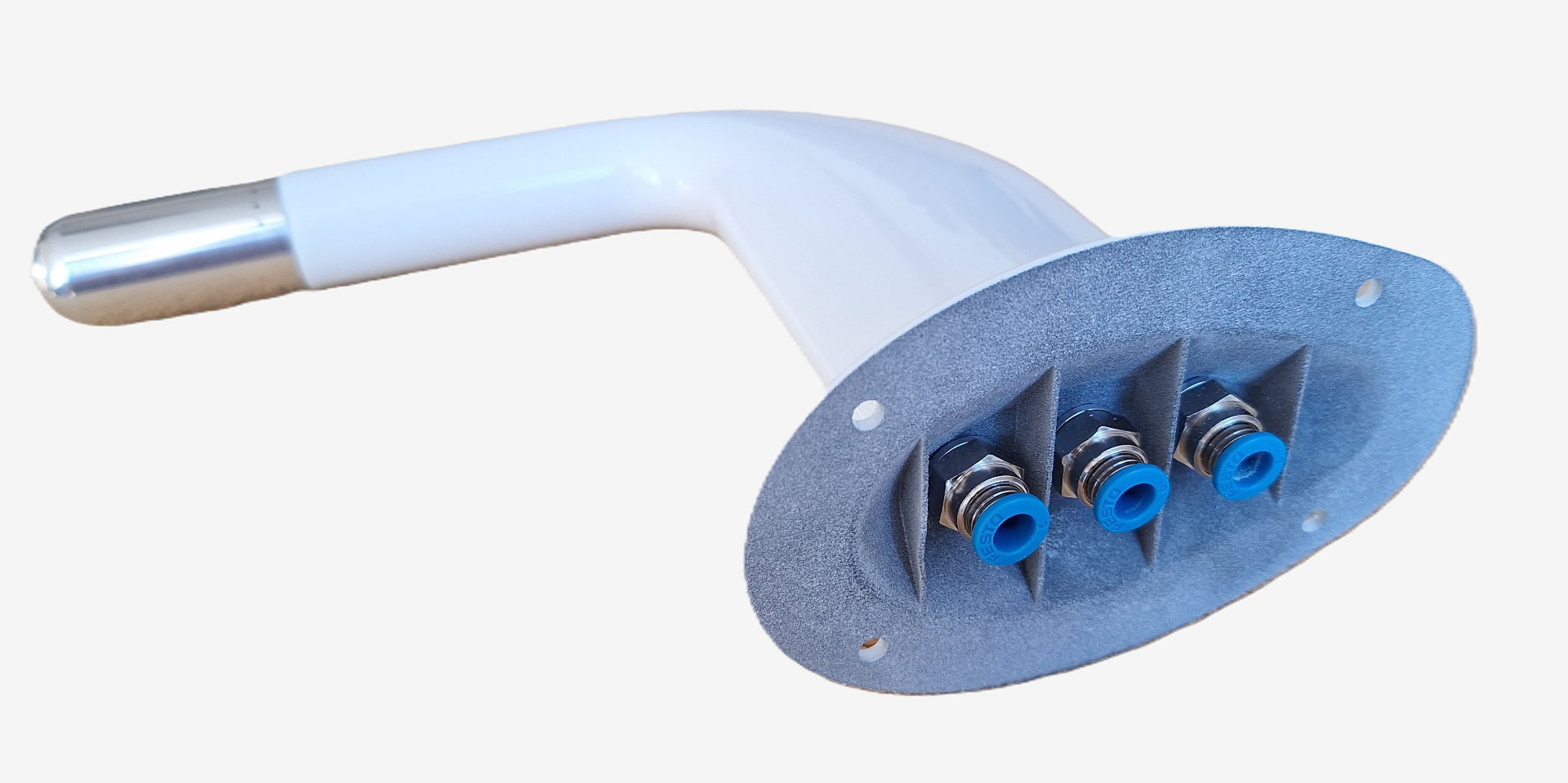

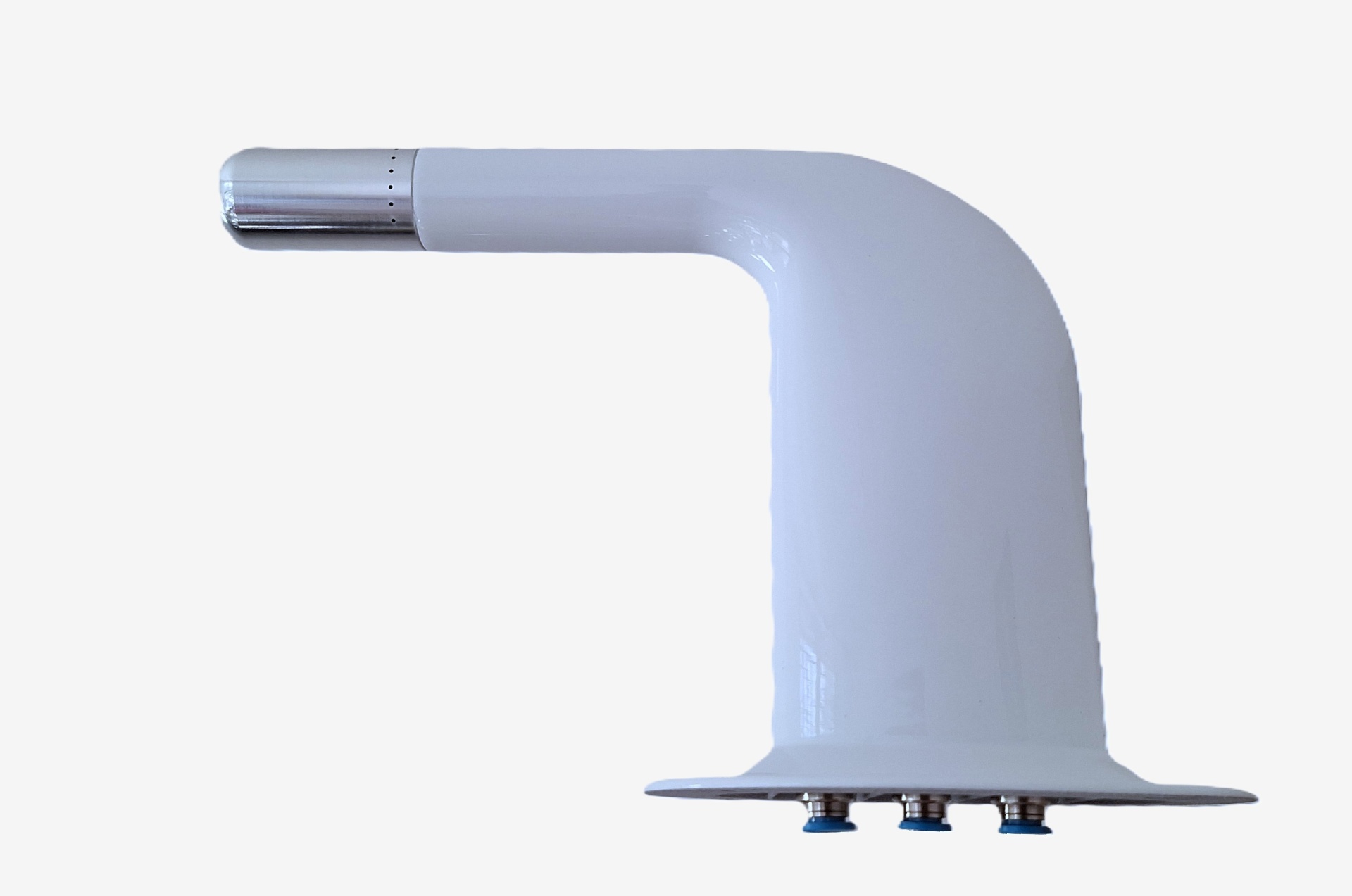

    Pitot sonda – boční pohledPitot sonda – zadní pohled

    Case Study

    Proven in a Real Project

    The probe was designed and integrated into a real aircraft airframe – addressing installation constraints, weight optimization, and operational reliability. See how the development progressed from initial concept to flight testing.

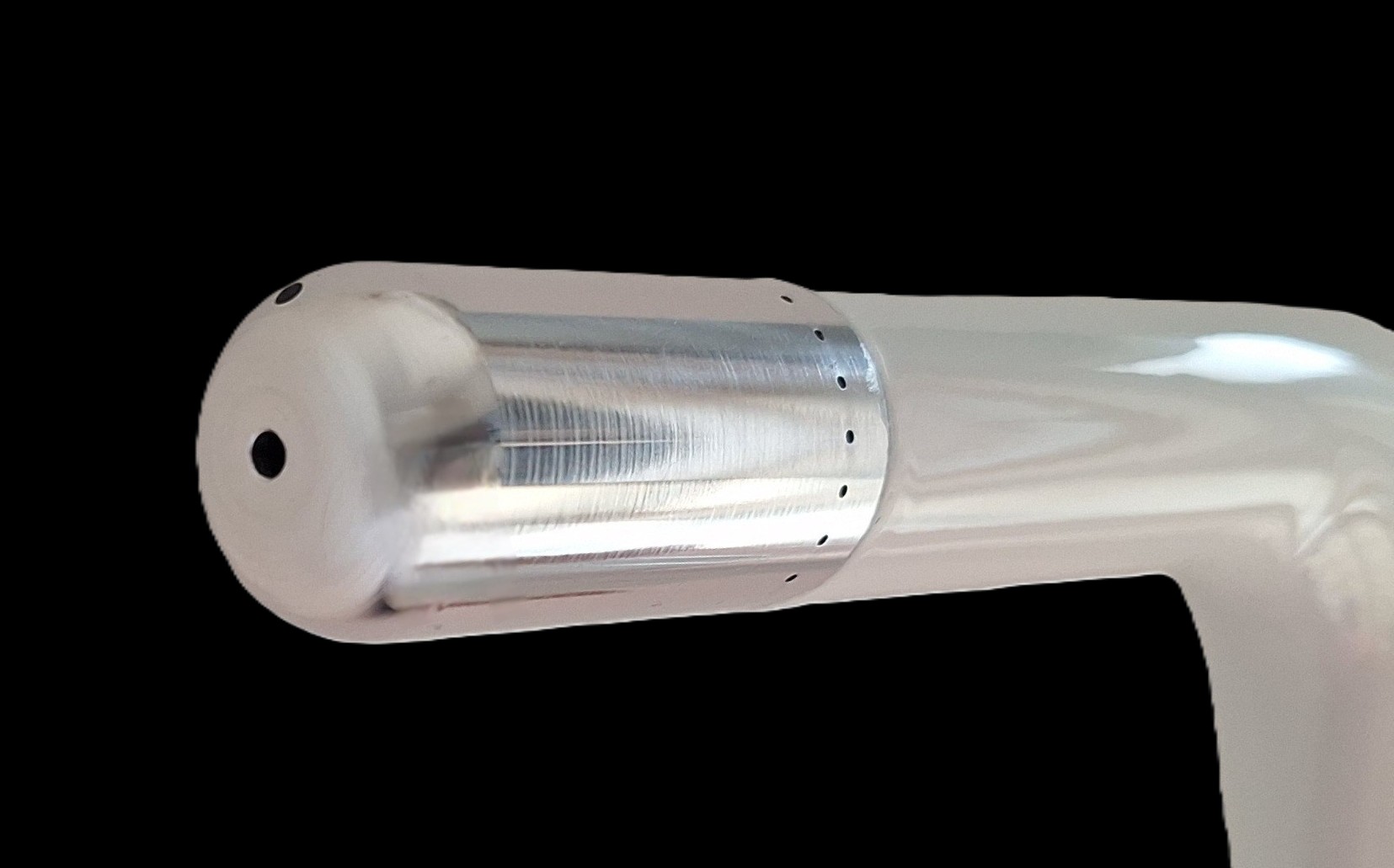

    Pitot sonda – případová studie

    Interested in a pitot static tube or have your own idea?
